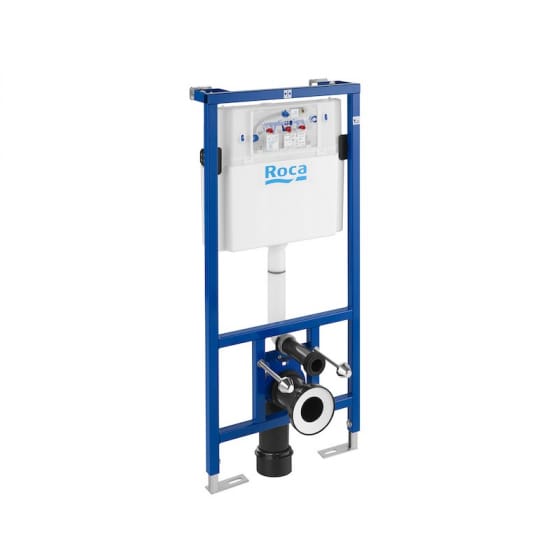

Roca Duplo Wall Hung Toilet Frame and Cistern

Model Standard

Our price £ 146.99 inc. VAT
Delivery (estimated)

Whether it's installing a back to wall toilet at home or in a public setting. Roca's compact concealed cistern offers a smaller form of cistern that fits in almost anywhere.

The flexible fitting of this cistern and it's adjustable inlet pipe give it fantastic flexibility. While dual flush capability across a selection of flush volumes makes it far more viable for areas with water use restrictions.

Capable of being installed in hard walls or stud walls. This cistern features a front-facing flush panel for pairing with almost any Roca flush plate.


  • Manufacturer: Roca
  • Range: Duplo, In-Wall
  • Suitable for solid or stud wall installation
  • 1/2" water supply
  • Includes 90mm horizontal waste
  • Dynamic pressure range: 0.1 - 10 Bar
  • Flush:  Dual 3/6L
  • Flush plate location: Front
  • Compatible with PL1 - PL7 & PL10 flush plates
  • Elbow connection: DN100 (110 mm), DN90 (90 mm)
  • Minimum fixation depth (mm): 140
  • Suitable for: Wall-hung WC
  • Tank depth (mm): 125
  • Water inlet position: Back, Top

Technical Specification

Water Supply1/2"
Dynamic Pressure Range0.1 - 10 bar
Looking for more information?

You're currently viewing a variant, for more information on this product please click the button below...

View Roca Duplo Wall Hung Toilet Frame and Cistern

Need help?

If you're having trouble or would like help completing your order, you can call our expert team on 0333 444 9444

Customer questions

Can I use any flush plate with this toilet frame?
No. Roca Duplo frames are compatible with Roca flush plates only.
What toilet do I need for this toilet frame>
Wall-hung toilet frames should be compatible with any wall-hung toilet.
Can I fit my flush plate to the top of the cistern?
The only model with the option of top flushing is the under-window variant.
