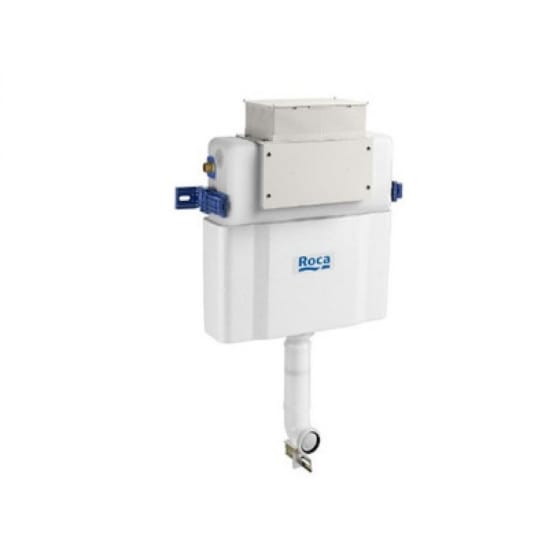

Roca Basic Under Window Concealed Cistern

The Roca Basic under window concealed cisterns are for use with back to wall toilets. Installing in solid or stud walls for convenient and universal installation. read more

Starting from £ 91.01 inc. VAT
Delivery (estimated)

The Roca Basic under window concealed cisterns are for use with back to wall toilets. Installing in solid or stud walls for convenient and universal installation.

Available options include a standard height and compact model. The former features an adjustable inlet pipe and greater height for fitting in a taller setup. Allowing for installations of between 910mmm and 980mm. While compact models feature a fixed but reduced height for an installation height of 820mm

Both tanks host a top-mounted flush panel. Letting you fit an array of panels vertically for easy and ergonomic flushing in both commercial and domestic settings.

Features:

  • Available in standard and compact models
  • Suitable for solid or stud wall installation
  • 1/2" water supply
  • Includes 90mm horizontal waste
  • Dynamic pressure range - 0.1 - 10 Bar
  • Flush - Dual 3/6L or 3/4.5L
  • Flush plate location - Top
  • Compatible with PL1 - PL7 & PL10 flush plates

Spec:

  • Standard:
    • Width - 535mm
    • Height - 648mm
    • Depth - 138mm
    • Features adjustable inlet pipe up to 70mm
    • Finished installation height - 910mm to 980mm
  • Compact:
    • Width - 535mm
    • Height - 465mm
    • Depth - 138mm
    • Fixed inlet pipe
    • Finished installation height - 820mm
