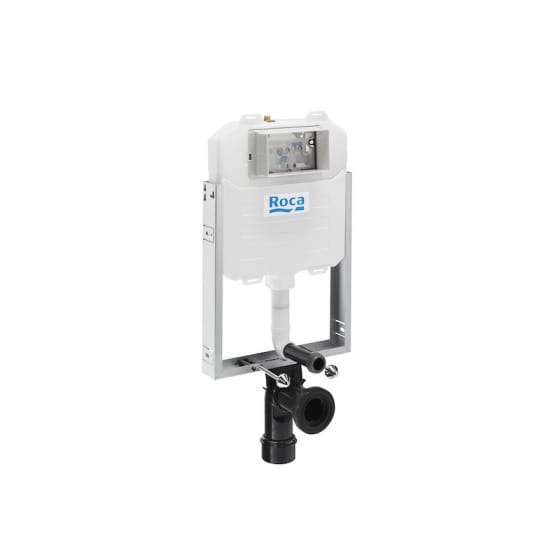

Roca Basic Wall Hung Toilet Frame and Cistern

Complete your toilet with the Roca Basic wall hung toilet frame and cistern. A solid wall frame with compact dimensions for easy installation. read more

Our price £ 118.72 inc. VAT
Delivery (estimated)

Complete your toilet with the Roca Basic wall hung toilet frame and cistern. A solid wall frame with compact dimensions for easy installation.

The Basic frame's structure bolts into existing brickwork or other solid surfaces to provide support for up to a 400kg load. All in a dainty low-profile package that cuts down on the amount of prep needed to fit this frame.

Capable of dual flushes of 3/6L or 3/4.5L. This frame is also water-savvy. With all the standard connections you'd expect for fitting to a regular wall hung toilet. Including 1/2" water supplies, 90mm horizontal waste

Features:

  • Suitable for solid wall installation only
  • Supports up to 400kg load
  • 1/2" water supply
  • Includes 90mm horizontal waste
  • Dynamic pressure range - 0.1 - 10 Bar
  • Elbow connection - DN100 (110mm), DN90 (90mm)
  • Flush - Dual 3/6L or 3/4.5L
  • Flush plate location - Front
  • Compatible with PL1 - PL7, PL10, EP1 & EP2 flush plates
  • Optional 110mm horizontal waste available separately

Spec:

  • Width - 480mm
  • Height - 865mm
  • Depth - 78mm
