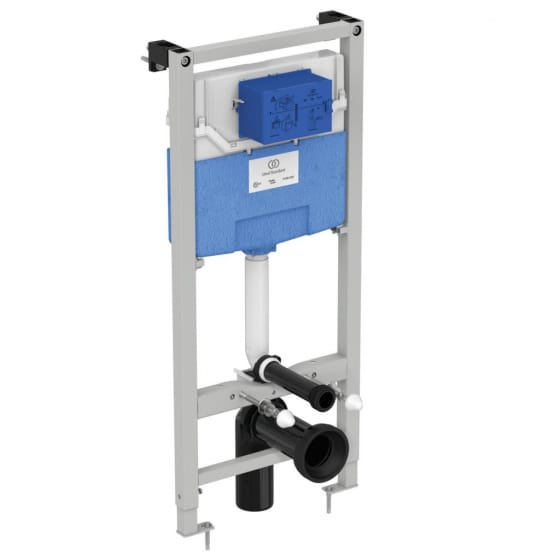

Features
- For installation in front of a solid wall or between two light plasterboard walls according to manual
- Frame tested for a load of 400 kg
- Frame corrosion-resistant & resistant to scratches
- Easy and quick installation with EasyFix system
- Directional outlet elbow, adjustable in depth
- Height adjustable from 0 to 200mm, quick-adjusting height legs with brakes allowing one-person installation
- 150 mm minimum thick
- Built-in tank with front pneumatic actuation, possible mechanical or electronic kits available as separately
- Dual flush, pre-set for 6/3 L, simple adjustment to reduce full flush from 6 to 4.5 L
- Reservoir in polypropylene (PP) very resistant and unalterable to thermal stresses, supplied with anti-condensation lining
- SmartValve (saves up to 9 litres of water per day), CE marking EN 14055 CL1, silent valve according to the NF standard category Class I, tank 120 mm thickness, 2 water supply connections
Specification
- Dimensions:
- Width - 500mm
- Height - 1150mm
- Depth - 120mm-180mm
- Included:
- Toilet bowl fixing hardware
- Frame fastening materials
- Inlet and outlet WC bowl connection
- Outlet bend and Ø90/110 mm adaptor
- Bowl rubber seal Ø45 mm
- G ½” stop valve
