Product Description

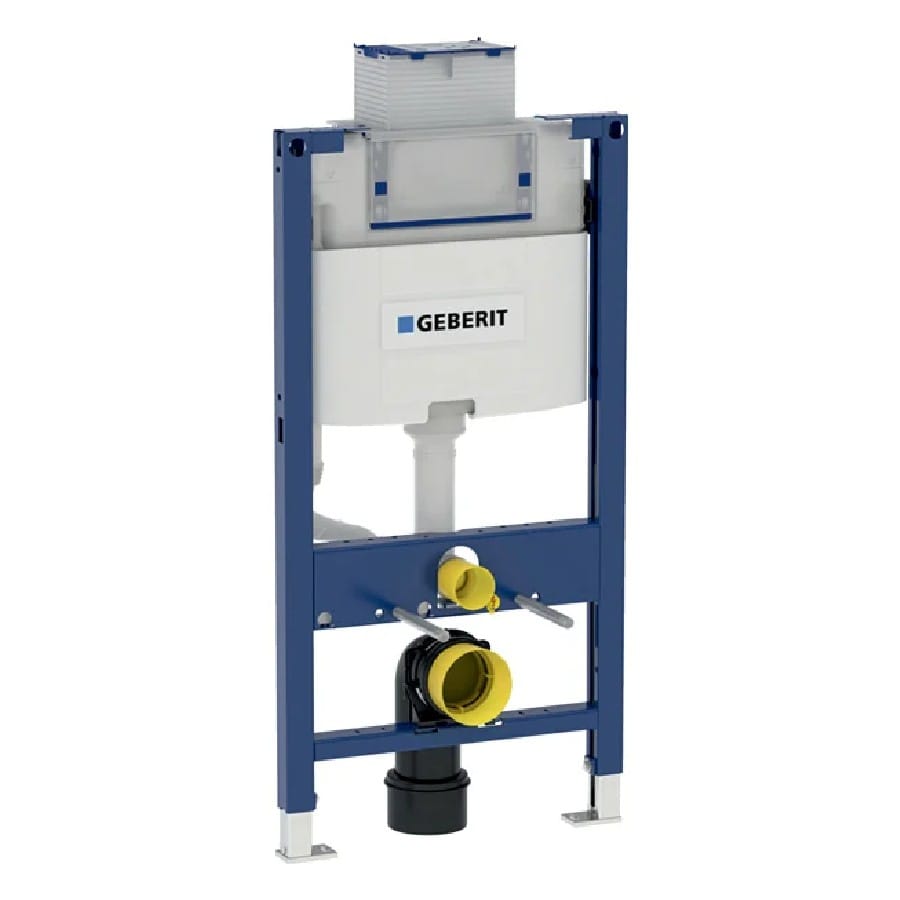

Geberit's Duofix range of wall-hung toilet frames is expanded by this collection of frames that use Omega cisterns. Allowing you to use your choice of Delta flush plate from Geberit.

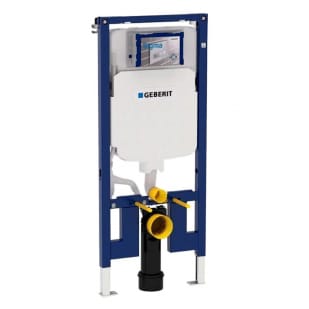

The frames themselves are available in 3 heights to suit your particular installation. From the 82cm model that's perfect for under-window installations thanks to its short height and option for top or front fitting of your flush plate. All the way to the tallest 1.12cm frame that provides a super-strong flush and high flush-plate position.
All frames feature hardy galvanized steel structures that are powder coated to prevent corrosion. As well as insulated cisterns. Every set includes essential fixings for plaster installations. While adjustable feet ensure exact settings when fitting.
Technical Specification
- Flush Type: Dual Flush
- Material: Steel
- Manufacturer: Geberit
- Collection: Duofix
- Dimensions:
- Width: 500mm
- Height: 820 / 980 / 1120mm
- Flow Pressure: 0.1 - 10 Bar
- Compatible with Aquaclean range toilets
- Additional Information:
- For drywall installation
- Frames available for part or full-height wall installations
- For wall-hung toilets with projections up to 62cm
- Self-supporting powder-coated frames
- Adjustable feet: 0-20cm
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Front or top flush actuation
- Fully insulated cistern against condensation
- Water inlet: left or rear-left
- Equipped with conduit pipe for feed pipes when connecting Aquaclean shower toilets
- Fastening option for electrical connections
