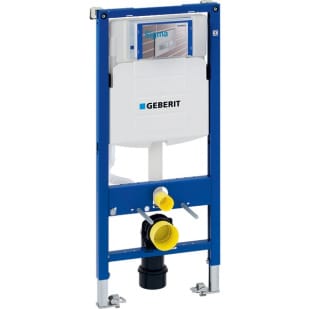

Geberit Duofix Wall Hung Toilet Frame 1.14m With 8cm Sigma Cistern

Looking for a frame to safely mount your wall hung toilet on? Your search is over! The Geberit Duofix WC Frame complete with an 8cm cistern offers a reliable solution at an excellent price.  read more

Our price £ 279.99 inc. VAT
Delivery (estimated)

Product Description

Looking for a frame to safely mount your wall-hung toilet on? Your search is over! The Geberit Duofix WC Frame complete with an 8cm Sigma cistern offers a reliable solution at an excellent price. Allowing for safe and sturdy mounting of your choice of wall-hung toilet.

Boasting a reduced depth, this cistern can slide straight into even the narrowest of wall cavities for total ease of installation when space is an issue. This cistern works beautifully with Geberit's stunning AquaClean collection and given the reputation this household name has for outstanding craftsmanship, you'll have real peace of mind in your new frame.

Technical Specification

  • Manufacturer: Geberit
  • Range: Duofix Sigma
  • Dimensions:
    • Width: 590mm
    • Height: 1140mm
  • Finish: powder-coated Galvanized Steel
  • GTIN: 4025416352648
  • Flow pressure: 0.1-10 bar
  • Maximum operating water temperature: 25°C
  • Includes fixing materials
  • Flush volumes:
    • Factory: 5.8 / 3 liters
    • Large: 4.5 / 5.8 liters
    • Small: 3 / 4 liters
  • Additional Information:
    • Supplied with UP720 Sigma cistern 8cm
    • Installation in a part or room-height prewall installation
    • For use in drywall installations
    • Installing in a load-bearing stud wall
    • Designed to work with AquaClean collection
    • Self-supporting product
    • Concealed cistern fully insulated against condensation
    • Water supply connection at the top, offset to the left side
    • Frame with 9 mm drilling holes for fastening in wood frame construction
    • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
    • Footplates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
    • Connection bend can be mounted without tools at different depths, adjustable range 45 mm
    • Fastening for connection bend, sound-absorbing
    • Concealed cistern with front actuation, fully insulated against condensation
    • Tool-free installation and maintenance work on concealed cistern
    • Protection cover box for service opening protects against moisture and dirt
    • Protection box for service opening can be cut to length
    • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
