Product Description

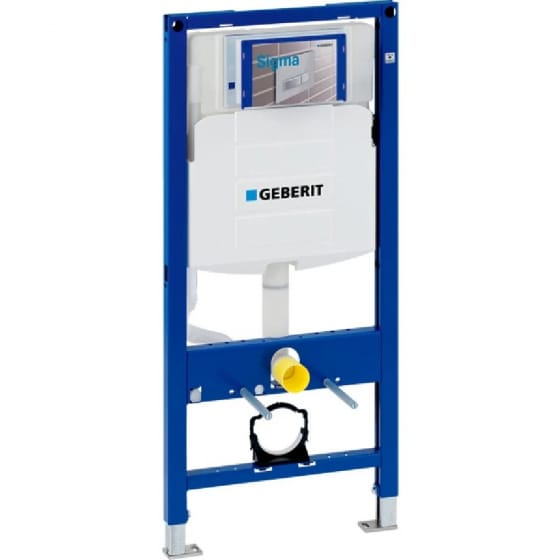

The Duofix range of wall hung toilet frames and cisterns come in a range of sizes, specs and price ranges. This Sigma model includes a commercially-focused UP320 cistern. Fully insulated to prevent condensation and with a rigid powder-coated frame that is built to accept heavy loads and stand the test of time with little to no maintenance.
However, a protection box for service openings is present. Helping keep out dirt and grime that could cause damage to the frame or mechanisms of the cistern.
The cistern itself accepts Geberit Sigma dual flush plates. Giving you a broad range of styles and finishes to choose from for your installation.
Please note, that this frame and cistern do not include fixing brackets for walls, a WC outlet bend or an HDPE adaptor.
Features
- Does not include pre-wall fixing brackets, HDPE adaptor or WC outlet bend
- Range: Duofix
- Width: 500mm
- Height: 1120mm
- Cistern Depth: 12cm
- Works with AquaClean collection.
- Includes fixing hardware
- Additional information:
- Self-supporting frame, powder-coated
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Frame width reduced for placement of support handles next to the element
- Adjustable installation height of WC during the installation phase, 41–46 cm
- Galvanized feet
- Feet adjustable 0–20 cm
- Non-slip leg supports
- Rotatable footplates
- Footplate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Fastening for connection bend, sound-absorbing
- Concealed cistern with front actuation
- Concealed cistern fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Tool-free installation and maintenance work on the concealed cistern
- Water supply connection on the rear or top centre
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- With fastening option for electrical connection
Technical Specification
| Manufacturer | Geberit |
| Range | Duofix |
| Colour | Blue |
| Material | Plastic |
| SKU | 111.384.00.5 |
| Width | 500mm |
| Depth | 120mm |
| Height | 1120mm |
| Water Inlet | Centre Back or Top |
| Compatible Flush Plates | Sigma |
| Guarantee | 1-Year |
