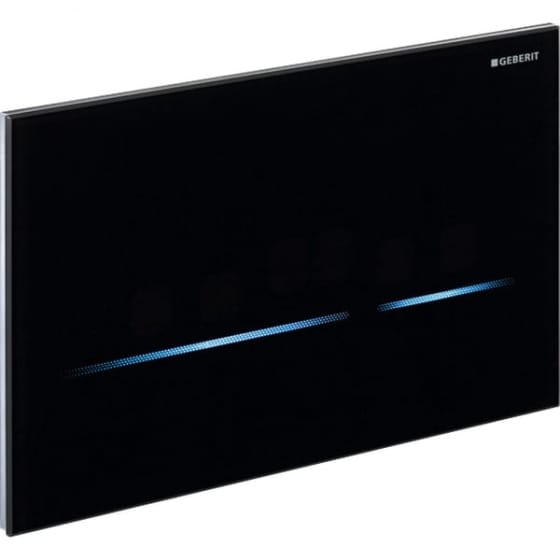

Geberit Sigma80 Touchless Flush Plate for Sigma

What could possibly be more hygienic than a toilet you can flush without even touching it? read more

Starting from £ 1,023.95 inc. VAT
Please note: Only compatible with Geberit Sigma wall hung toilet frames & cisterns – please read important information below
Delivery (estimated)
Important information
Please note: Only compatible with Geberit Sigma wall hung toilet frames & cisterns

Product Description

What could possibly be more hygienic than a toilet you can flush without even touching it?

Designed to suit 8 or 12cm cisterns, this flush plate can bring a futuristic and luxurious feel to any bathroom. Manufactured in two stunning finishes which include black glass or smoked reflective glass.

As you'd imagine with a flush plate like this, it is overflowing with top-of-the-range features. IR distance detection with user detection and a sleek background fades out. It would not be possible to find a more futuristic flush plate for your bathroom.

Specification

  • For Sigma 12cm Cistern
  • Protection degree IP45
  • Nominal voltage 85-240 V AC
  • Mains frequency 50-60 Hz
  • Operating voltage 4.1 V DC
  • Interval flush, adjustment range 1-168 h
  • Interval flush, factory setting Off
  • Detection time, adjustment range 1-60 s
  • Detection time, factory setting 7 s
  • For private and semipublic areas
  • For releasing a dual flush
  • For solid and drywall construction
  • Suitable for less-abled installation
  • Includes:
    • Mounting frame
    • Support block with servomotor and lifting device, premounted
    • Fastening material
  • Touchless manual flush actuation
  • Automatic flush actuation can be activated
  • Button illumination activated when approached
  • Button illumination can be set in five colours
  • Orientation light can be activated
  • Power supply via power supply unit
  • Transformation of mains voltage to extra-low voltage, 4.1 V DC
  • Operation with extra-low voltage, no mains voltage in the cistern
  • Flush actuation can be manually deactivated for cleaning
  • With the push-fit connection with cross-polarity protection
  • Infrared user detection with background fade-out
  • Self-adjusting IR sensor
  • Reliable IR distance detection
  • The user detection range can be set
  • Adjustable interval flush
  • Preflush can be set
Need help?

If you're having trouble or would like help completing your order, you can call our expert team on 01622 580 200

Customer questions

Can this flush plate be used with any toilet cistern?
No. Sigma flush plates can only be used with Geberit Sigma series concealed cisterns and wall hung toilet frames.
