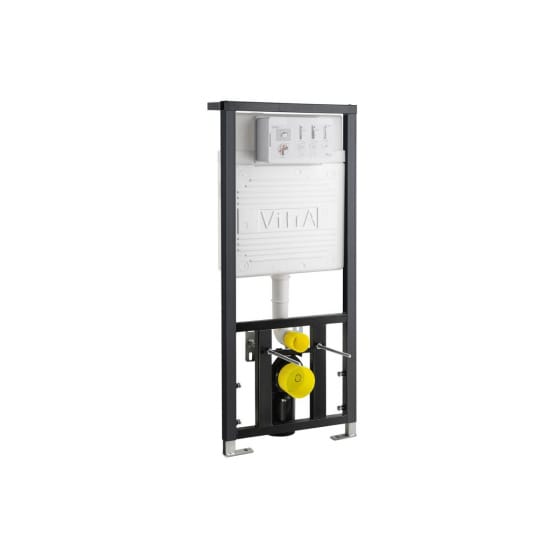

Vitra 12cm Wall Hung Toilet Frame & Cistern

Designed for wall-hung WC's, the Vitra 12cm cistern and frame pack is suitable for solid wall installation such as brick. read more

Starting from £ 116.24 inc. VAT
Delivery (estimated)

Product Specification

Designed for wall-hung WC's, the Vitra 12cm cistern and frame pack is suitable for solid wall installation such as brick. This frame has 2 options for how you fix it in place it's suitable for floor or floor/wall fixation. All cisterns come as 3/6L capacity by default but you can choose to switch to a more economical 2.5/4L cistern. We recommend pairing this cistern and frame with a Vitra flush plate.

Technical Specs:

  • Dimensions:
    • Width: 490mm
    • Height: 1100-1270mm
    • Depth:
      • 160-240mm (Floor/Wall)
      • 180mm (Floor)
      • 250mm (Double Floor)
  • Fixation Style Available:
    • Floor/Wall
    • Floor
    • Double Floor
  • Capacity Available:
    • 3/6 L
    • 2.5/4 L
  • Pressure:
    • Minimum: 0.5 bar
    • Maximum: 10 bar
  • Water-saving cistern
  • Control type: Dual flush
  • To be used with new generation super-efficient wall-hung WC pan
  • Suitable for mechanical, pneumatic or electronic flush plates
  • Supplied with 5 years guarantee
Need help?

If you're having trouble or would like help completing your order, you can call our expert team on 0333 444 9444

Customer questions

Do I have to have a Vitra toilet to use this cistern?
No, any wall-hung toilet should be compatible with this frame. The only part that must be brand-matched is the flush plate.
What is a double floor fixation frame?
This frame features two back-to-back inlets and outlets that share a larger capacity cistern. Each side has its own flush panel for independent control of two toilets.
Ask a question

Contact us to ask us anything you'd like to know

Available variations
