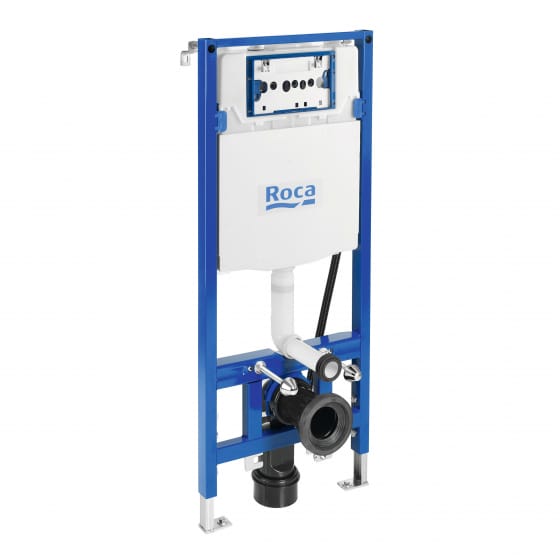

The Duplo ONE Installation System is specially designed to support Roca In-Wash smart toilets. Built for wall-hung WCs, this system includes a strong frame and slim 80 mm concealed cistern, making it ideal for modern bathroom designs. It requires only 107 mm of installation depth and comes preset with a dual flush (3/6 litres) to help reduce water usage. With a top water inlet and front-facing flush panel, it’s easy to connect and operate. Compatible with both DN90 and DN100 waste pipes, this installation system offers solid support, smart functionality, and efficient flushing—making it the perfect match for your smart toilet.
About Duplo One:
The Duplo One collection offers compact and versatile concealed cisterns and wall-hung toilet frames. Designed for easy installation in tight spaces, these systems combine water-saving dual flush, quiet operation, high load capacity, and compatibility with a stylish range of PL flush plates to suit modern bathroom designs.
Features:
- Unit Dimensions (mm):
- Height: 1190
- Depth: 107
- Width: 475
- Minimum Fixation Depth: 107
- Tank Depth: 80
- Designed for Roca In-Wash smart wall-hung toilets.
- Dual flush system (3/6 litres) saves water.
- Top water inlet for quick connection.
- Supports both DN90 and DN100 waste connections.
- Frontal panel for easy operation.
- NOTE: Please check it's compatible with the flush plate before ordering.
- 5-year Roca guarantee.
