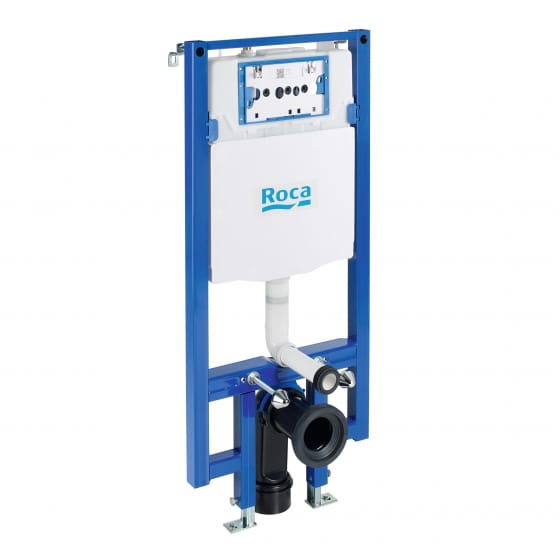

The Duplo ONE Compact Depth Installation System is a space-saving solution designed for wall-hung toilets. It includes a sturdy frame and an 80 mm slim concealed cistern, making it ideal for bathrooms with limited space. With a minimum installation depth of just 90 mm, it fits easily into solid or stud walls. The dual flush system (3/6 litres) helps save water and is preset for easy use. The system features a top water inlet and a front-facing flush panel for easy access. Compatible with both DN90 and DN100 waste connections, it provides flexibility during installation. This system is strong, easy to install, and perfect for modern bathrooms.
About Duplo One:
The Duplo One collection offers compact and versatile concealed cisterns and wall-hung toilet frames. Designed for easy installation in tight spaces (like under windows), these systems combine water-saving dual flush, quiet operation, high load capacity, and compatibility with a stylish range of PL flush plates to suit modern bathroom designs.
Features:

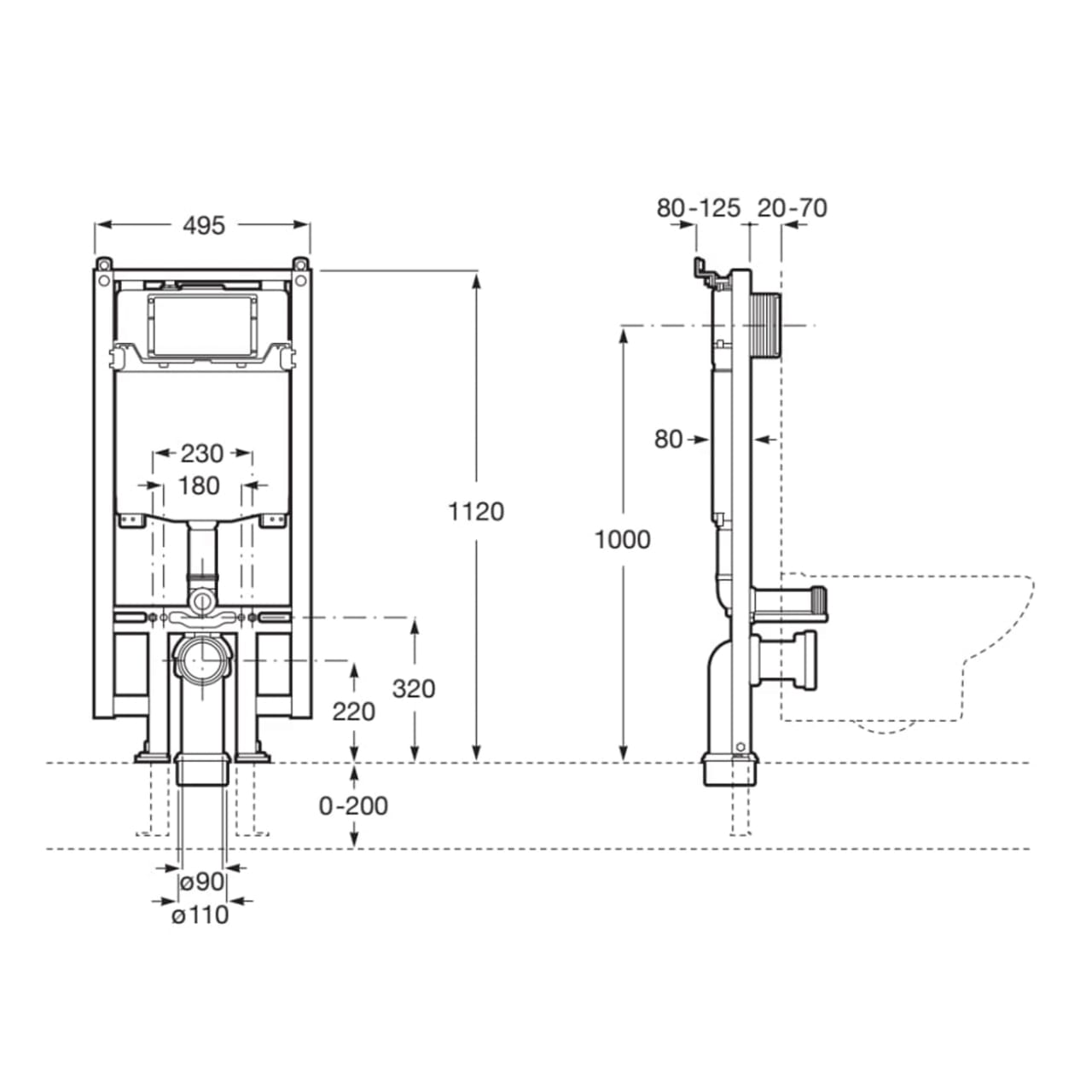

- Unit Dimensions (mm):
- Height: 1120
- Depth: 90
- Width: 495
- Minimum Fixation Depth: 90
- Tank Depth: 80
- Dual flush (3/6 litres) for water efficiency.
- Includes strong frame for wall-hung WCs.
- Top water inlet for easy connection.
- Frontal panel for simple flush access.
- Fits DN90 and DN100 waste pipes.
- Great for small or modern bathroom designs.
- NOTE: Please check it's compatible with the flush plate before ordering.
- 5-year Roca guarantee.
