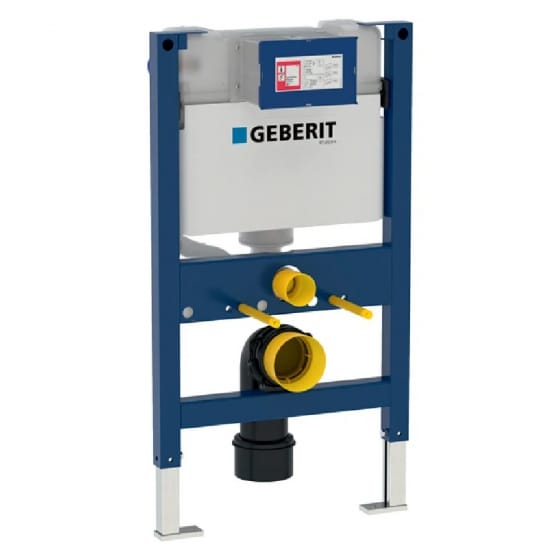

Geberit Duofix Wall Hung Toilet Frame 0.82m With Kappa 15cm Cistern

Sturdy and durable. This is exactly what you can expect from this WC frame from Geberit's Duofix collection.  read more

Our price £ 298.96 inc. VAT
Delivery (estimated)

Product Description

A Geberit Duofix Kappa wall hung toilet frame ensures the brand's legendary quality. Meaning fitting this frame into your plaster wall shouldn't bring up problems years down the line. Simply use the included fixing materials to fit your frame. Construct your wall. Fit your toilet. And you should enjoy years of reliable service flush after flush.

The fully insulated Kappa cistern is mounted on a robust powder-coated frame that stands on galvanized feet. Ensuring maximum protection against rust and other degradation.

All you need to finish off this 1-year guaranteed frame is your choice of Geberit Kappa flush plate

Technical Specification

  • Dimensions:
    • Width: 500mm
    • Height: 820mm
  • Finish: Galvanized Steel
  • Flow Pressure: 0.1 - 10 bar
  • Maximum operating temperature - water: 25 °C
  • Flush volume factory setting: 5.8 and 3 liters
  • Flush volume small, adjustment range: 3 - 4 liters
  • Water supply connection on the left
  • Self-supporting powder coated frame
  • Welded flush bend
  • Includes fixing material
  • Additional Information:
    • For drywall construction
    • For installation in part-height pre-wall installations
    • For use with wall-hung toilets with projections up to 62cm
    • Front actuation
    • Fully insulated against condensation
    • Water inlet on the left
    • Adjustable feet: 0-20cm
Need help?

If you're having trouble or would like help completing your order, you can call our expert team on 01622 580 200

Customer questions

Can I use this frame and cistern with any toilet?
This toilet frame is only for use with wall-hung toilets with projections up to 62cm.
Can I fit any flush plate to the cistern?
No. Only Geberit Kappa range flush plates are compatible with this frame and cistern.
